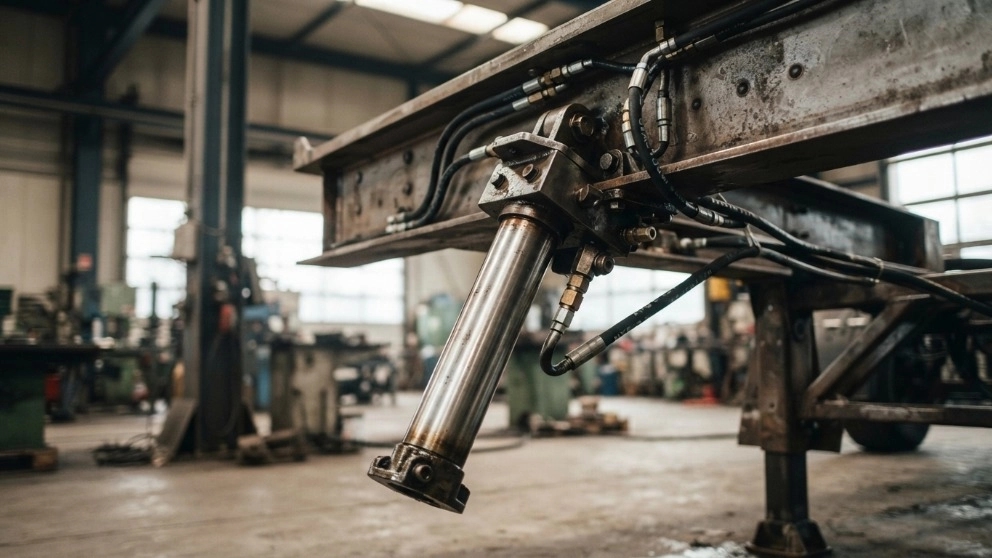

What is a hydraulic trailer jack with custom length and how is it different from the standard model?
- Precise and practical course for the required working height
- Appropriate package length for installation space limitations
- Open length suitable with the angle and height of unloading or lifting
- Connection design according to the location and applied stresses
- Choosing the cylinder and shaft diameter according to the load capacity and working pressure
Why do we need custom length in trailers?
Diversity of use and chassis design
Loading and unloading conditions
Loading and unloading conditions
Advantages of using custom length hydraulic trailer jack
Increasing efficiency and reducing operation time
Reducing additional pressures on the chassis and connections
Increasing the lifespan of seals and internal parts
Better compatibility with the installation space
Key components of hydraulic trailer jack and their effect on length customization
- Cylinder: the body in which the oil creates pressure
- Shaft or piston rod: the moving part that transmits power
- Packing and seals: preventing leakage and maintaining pressure
- Groove and bushings: guiding the shaft and reducing slack
- Installation connections: Ears, pins, flanges or special bases
- Oil inlet and outlet: Threads and hydraulic ports
In custom length hydraulic trailer jack, usually the stroke, closed length, open length, connection type and even the position of the ports can be changed to match the actual condition of the trailer.
Selection criteria for hydraulic trailer jack with custom length
The right choice is a combination of calculation, experience and knowledge of work conditions. To choose hydraulic trailer jack with custom length, these criteria should be checked:
1) Required course
The course should be such that the trailer reaches the desired height and angle, but does not cross dangerous and unstable areas. A stroke less than required causes the operation to remain incomplete, and an excessive stroke increases excess stress and the possibility of overturning.
2) Package length and installation restrictions
In many trailers, the space between the chassis and connections is limited. If the length of the package is long, the installation becomes difficult or the structure needs to be changed.
3) Working capacity and pressure
The capacity of the jack depends on the cylinder diameter, shaft diameter and oil pressure. The choice should be such that there is a safe margin in the worst loading conditions.
4) User type and work cycle
If the trailer unloads several times a day or works in harsh environments, special attention should be paid to the quality of materials, seals and interior design.
5) Build quality and support services
In custom projects, it is important that the supplier can provide detailed technical advice, have reliable quality control and cooperate in supplying consumables. In this section, the Novinjack collection, focusing on the real needs of the fleet and providing tailored solutions, can be a professional choice for providing hydraulic trailer jacks with customized length.
Common errors in choosing jack length and its consequences
One of the reasons for premature failure or unreliable performance is incorrect length selection. In hydraulic trailer jack with custom length, the following errors should be avoided:
Choosing a course regardless of the geometry of the levers
Sometimes the stroke on paper is sufficient, but the actual height is not provided due to the mounting angle. The result is high pressure and slow movement.
Using more length than needed to "make sure"
Extra length is not necessarily safer. In some trailers, approaching the end of the course or increasing the angle can reduce stability.
Ignoring lateral forces
If the installation location or the angle of the jack is not correct, the lateral forces will enter the shaft and cause the shaft to be loose, the shaft will fall out of alignment, and the seals will fail.
Basic installation tips for custom-length hydraulic trailer jacks
Correct installation complements correct selection. Pay attention to the following points for the optimal performance of hydraulic trailer jack with custom length:
- Check the alignment of the jack axis with the direction of movement of the structure
- Choose the pin and bush connections with appropriate tolerance
- Adjust the path of the hoses so that no stretching or twisting occurs during full movement
- Prevent contamination from entering the hydraulic system, because small particles can destroy the seals
- After installation, perform a few no-load cycles for airing and checking for leaks Give
Maintenance and service to increase the life of hydraulic trolley jack with customized length
Even the best custom length hydraulic trailer jack will degrade if not maintained. These steps are simple but important:
Checking the leakage and condition of the seals
Small leaks lead to pressure drop and reduced power over time. Take the leak seriously and find the cause quickly.
Oil quality control
Prevent shock and sudden loading
Sudden discharges or shocks at the end of the stroke can damage internal components. Proper speed adjustment and system pressure control is helpful.
Review of connectors and pins
Looseness at the joint causes side forces and faster failure of the shaft and bushings.
The role of Novinjak in supplying the trailer hydraulic jack with customized length
When it comes to custom length hydraulic trailer jack, the most important success factor is the supplier's ability to accurately understand the need and provide a tailored solution. Newjack with a specialized approach in the field of hydraulic jacks, tries to provide a product that is compatible with the actual working conditions, installation limitations and productivity goals.
The advantage of working with a group like Newjack in custom projects is usually shown in these cases:
- Alignment of jack specifications with the actual use of the trolley
- Paying attention to the quality of construction and accuracy in execution details
- The possibility of providing options suitable for different working conditions
- Assisting in the correct choice to reduce the risk of failure and stopping the operation
If your goal is to increase stability, improve performance and reduce repair costs, choosing a custom length hydraulic trailer jack from a specialist supplier like Newjack can be a smart decision.
summary; Why is the custom-length hydraulic trailer jack the choice of professionals?
In the real world, trailers don't always operate in ideal conditions, and small differences in chassis, load, track, and usage can have a big impact on component performance. Hydraulic trailer jack with customized length By accurately matching the length, stroke and dimensions of the installation, it helps the hydraulic system to work in the right range, increase safety and reduce costs due to breakdowns and stops.
Finally, if you are looking for a reliable solution to equip or upgrade your trailer, choosing and supplying a hydraulic trailer jack with custom length along with an expert set like Novinjack can guarantee the quality of your work in the long run.
